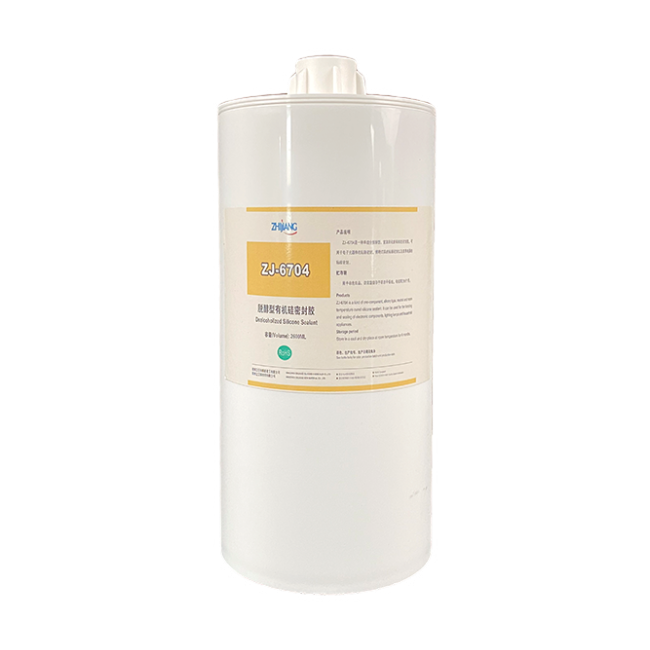

ZJ-6704
Dehydrated silicone sealant

ZJ-6704 is a single component dealcoholized room temperature curing silicone sealant, in a white paste form. When used, it reacts with trace amounts of water in the air to form a flexible silicone rubber elastomer after curing.

As a bonding, sealing, insulation, and moisture-proof material, this product is widely used in the bonding and sealing of electronic components, semiconductor materials, electronic appliances and other equipment, as well as the waterproofing and sealing of electric heaters and electronic instruments, and the sealing of electronic components.

Product features

1. Dehydration type, non corrosive to metal materials;

2. Fast surface drying speed;

3. High and low temperature resistance, working temperature -50~200 ℃;

4. Excellent dielectric performance;

5. Excellent weather resistance.

Product parameters
Before curing Performance Name

ZJ-6704

Testing standards

Appearance

White paste like

Visualization

Density/ (g/cm3)

1.25±0.1

GB/T 533-2008

Viscosity/ cps

25000~40000

GB/T 2794-2013

Surface drying time/ (25℃, min)

5~15

GB/T 13477-2017

After curing Appearance Elastic rubber Visualization

Hardness/ Shore A

35~50

GB/T 531-2008

Tensile strength/ MPa

≥1.0

GB/T 528-2009

Elongation at break/ %

≥200

GB/T 528-2009

Shear strength(Al/Al)/ MPa

≥0.8

GB/T 7124-2008

Dielectric constant(100KHz)

≤3.5

GB/T 1693-2007

Dielectric strength(KV/mm)

≥15

GB/T 1695-2005

Volume resistivity(Ω·mm)

≥1.0×1014

GB/T 1692-2008

The data in the table is for reference only, please refer to the measured data
Operation and Safety
  • usage method:
  • 1. Clean the surface: Clean the surface of the substrate to remove rust, dust, and oil stains.
  • 2. Gluing: Squeeze this product onto the cleaned surface of the substrate.
  • 3. Curing: Place the adhesive component in air and cure from the surface to the inside. Cure at 25 ℃ and 55% relative humidity for 24 hours, and the curing depth of the adhesive is 2-4mm. With the extension of time, the curing depth gradually increases.
  • matters needing attention:
  • 1. Curing requires moist air, which may take a long time in situations with large bonding areas.
  • After the operation is completed, the unused adhesive should be immediately tightened and sealed for storage. When reusing, if there is a slight crust at the sealing area, it can be removed without affecting normal use.
  • 3. Avoid contact with eyes, skin, and clothing. Immediately rinse with soap and water after skin contact. If it accidentally splashes into the eyes, immediately rinse with plenty of water. If you still feel unwell, go to the hospital for examination.
  • 4. If using a dispensing machine for gluing, it is recommended to soak the dispensing needle in a container containing silicone oil at the end or interruption of the operation to prevent solidification and blockage of the needle. When operating again, remove a small amount of glue from the needle.
Color and packaging

300mL/piece; 2600mL/piece; 210kg/barrel; Alternatively, packaging can be provided as needed.

Storage and expiration date

Store in a cool and dry place for 6 months.
